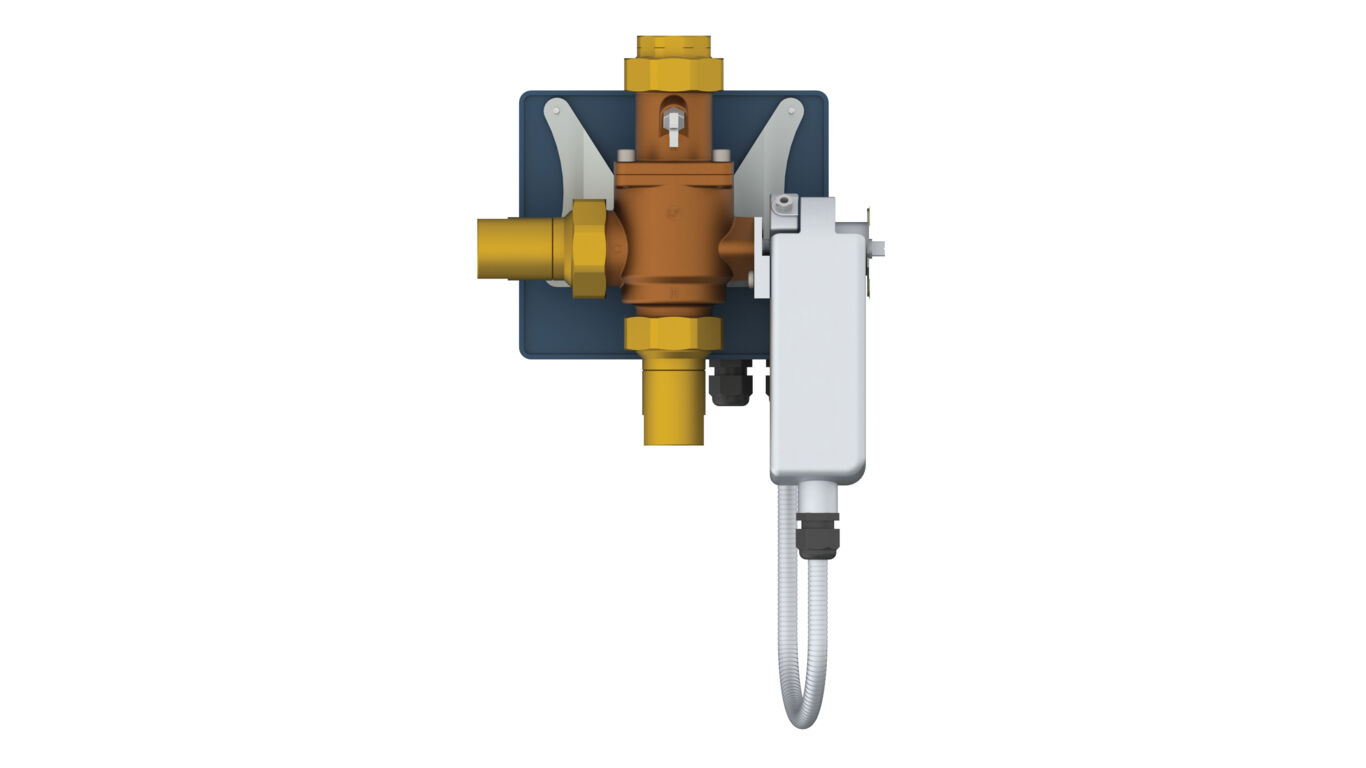

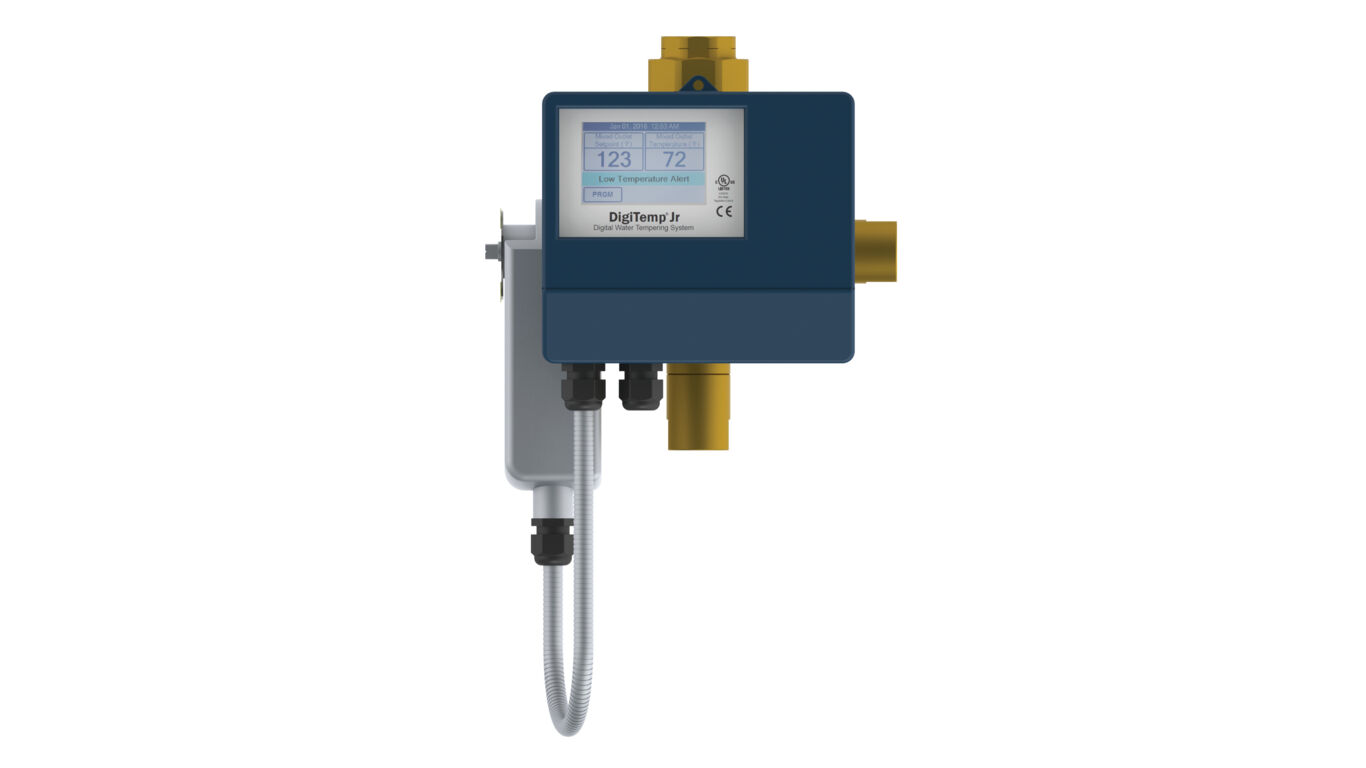

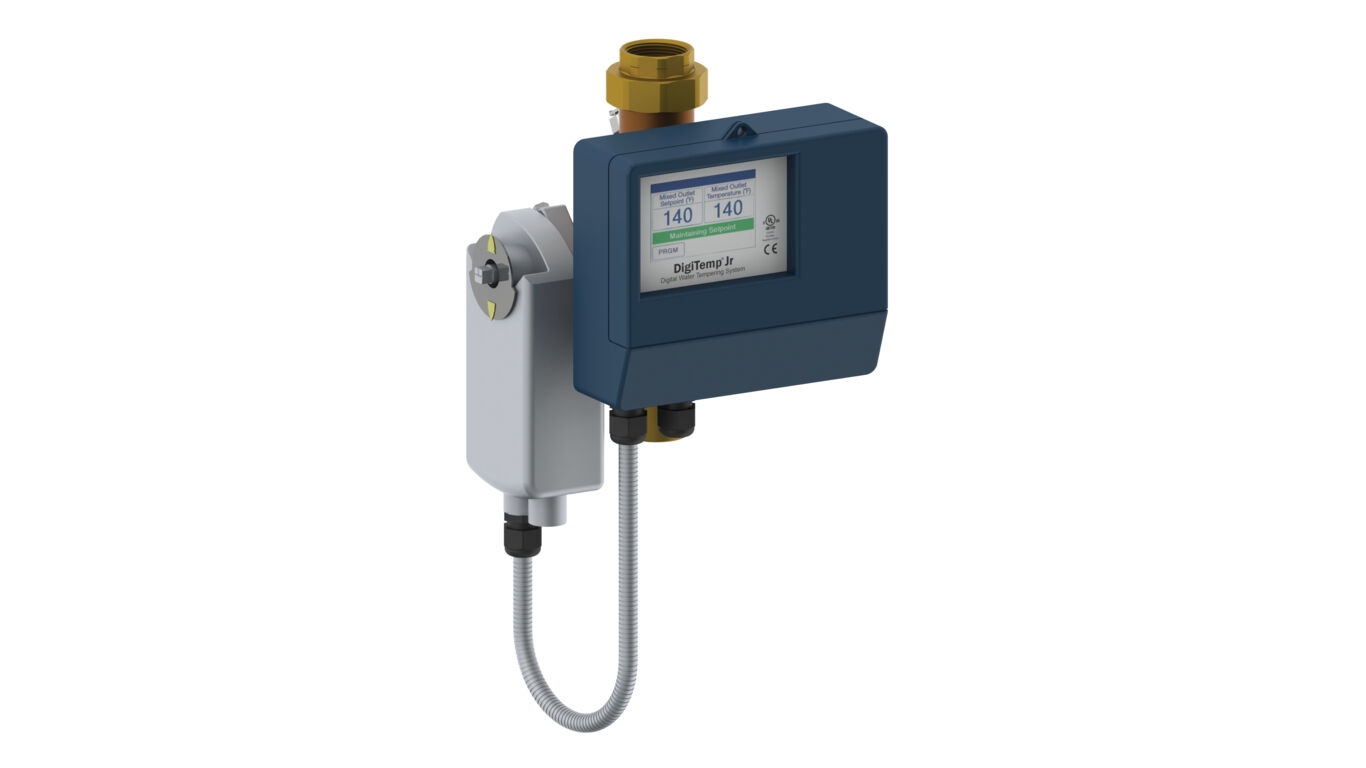

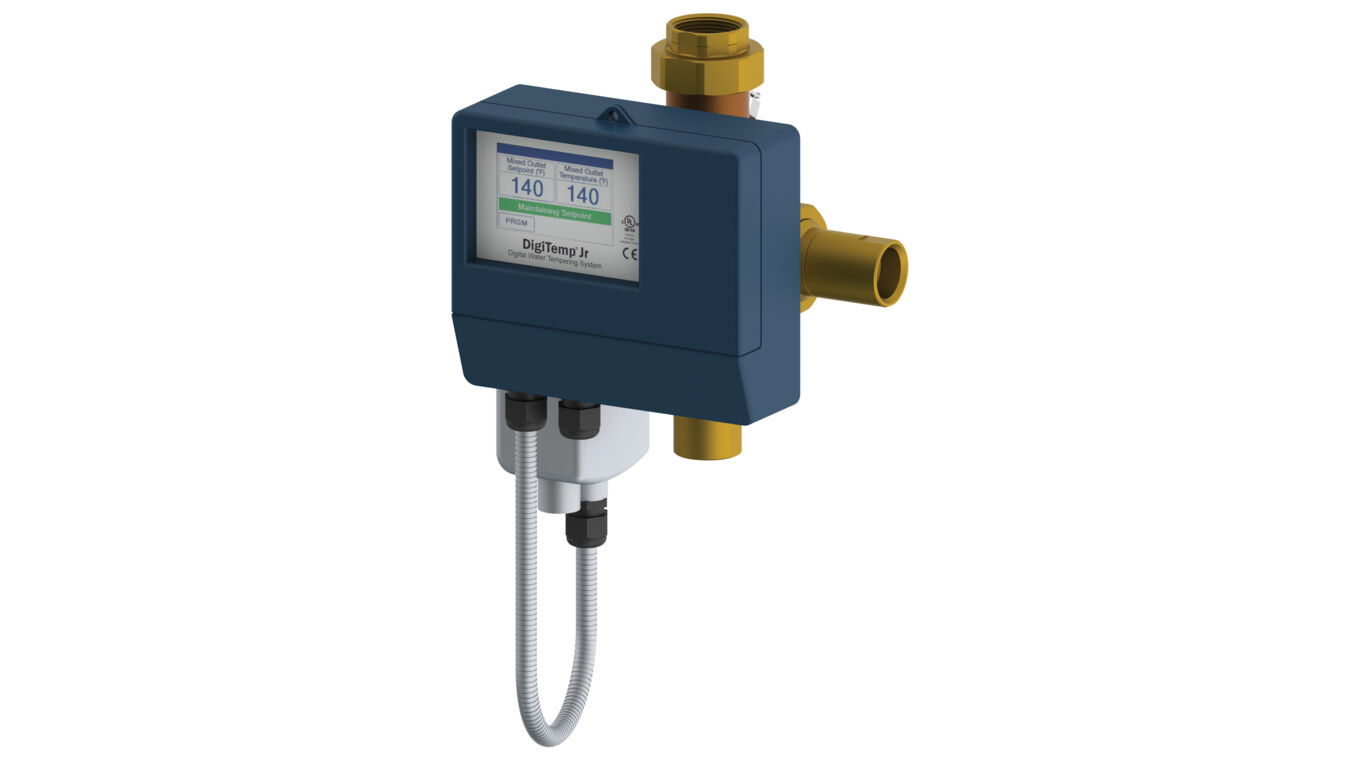

DigiTemp Jr

DigiTemp^® Jr Digital is a digital hot water master blending system that provides fail-safe control for commercial, institutional and industrial domestic water applications. Configurable on-site and easy to install, DigiTemp Jr doesn't require factory pre-programming, a laptop, or special software when commissioning or making adjustments. It anticipates flow change to control output water temperature within ±2°F of set point in compliance with ASSE 1017. DigiTemp Jr can be connected to a building automation system (BAS) via both BACnet and Modbus protocols to provide remote read/write access to a range of temperature and pressure measurements which allows adjustment of the outlet temperature setting within a pre-programmed range. Temperature setback feature contributes to energy efficiency and savings. The valve also features a high-temperature sanitization mode to help mitigate the risk of waterborne bacteria like Legionella as part of a user-directed and controlled thermal eradication protocol.

Features and Benefits

• Max 200psi operating pressure
• Programmable set point range 60°F to 180°F
• Precise temperature control ±2°F
• Available in sizes ¾ inch, 1 inch, 1 ½ inch and 2 inch
• Flow from 23 to 125 GPM @ 10psi pressure drop
• 3.5” full-color, user-selectable touch screen display
• User programmable high temperature alarm
• Passcode protected for security
• Supports BAS communication with BACnet MS/TP & Modbus RTU
• “Bubble tight” shut off prevents temperature creep
• Programmable hi/lo temperature alert
• Programmable schedule for setback of temperature
• On board clock for time stamping of error messages
• User-enabled sanitization mode to mitigate the risk of waterborne pathogens
• High speed actuator with manual override
• Low lead certified

Warranty

• 5-year limited warranty with 1-year labor

Certifications

• Valve: ASSE 1017, IAPMO cUPC, NSF/ANSI/CAN 61-G
• Controller: CSA 24/UL873, BACnet Testing Laboratory (BTL) listed
